VIBRATION DAQ · ANALYSIS · CONDITION MONITORING

Vibration measurement.
Machine insight.

Vibration data acquisition, QV Axiom signal analysis and machine monitoring for industrial measurement, diagnostics and NVH testing.

Explore QV-DAQ-04Talk to an engineer
HardwareSoftwareApplication support
THE QUADVION ACQUISITION PLATFORMQV-DAQ-04

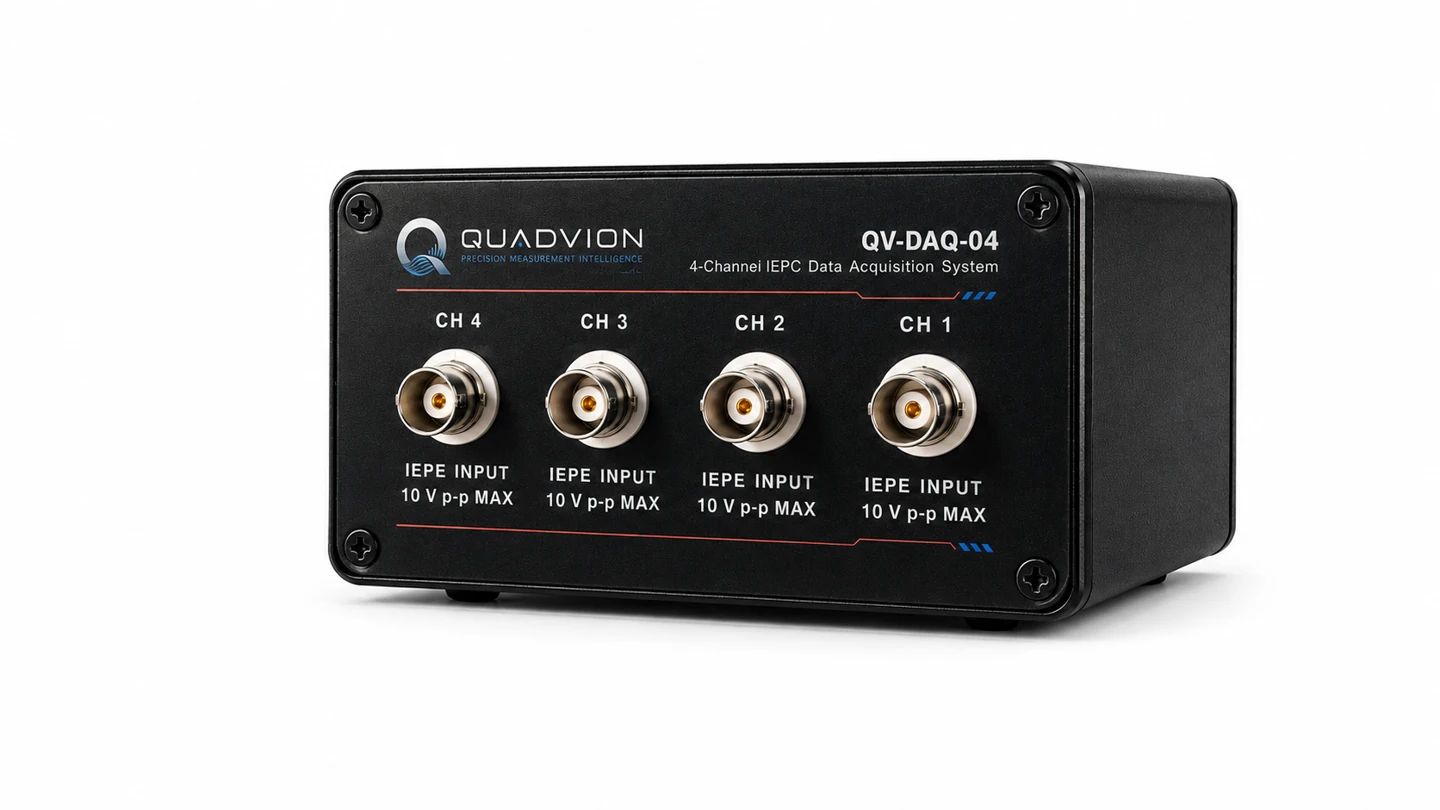

QV-DAQ-04 instrument with four BNC vibration inputs
4-channel vibration DAQDiscover the instrument
4 channelsSimultaneous acquisition
24-bitSignal resolution
IEPESensor inputs
EthernetPC connectivity
QUADVION MEASUREMENT SYSTEMS

Hardware. Analysis. Machine health.

Choose the measurement platform and workflow around your engineering task.

01 / DATA ACQUISITION

QV-DAQ-04

Compact, four-channel acquisition for synchronized vibration measurements.

  • 4 simultaneous inputs · 24-bit resolution
  • IEPE and voltage sensor configuration
  • Ethernet connection to your PC
Explore the instrument → 02 / SIGNAL ANALYSIS

QV Axiom

One workspace for live signals, frequency analysis and recorded measurements.

  • Time waveform · FFT · 1/3 octave
  • Acceleration, velocity and displacement
  • Recording, trends and post-processing
Explore the software → 03 / CONDITION MONITORING

Machine monitoring

Application-configured monitoring for industrial rotating equipment.

  • Machine and measurement-point hierarchy
  • Condition trends and event evidence
  • Dashboard and integration planning
Plan a monitoring system →

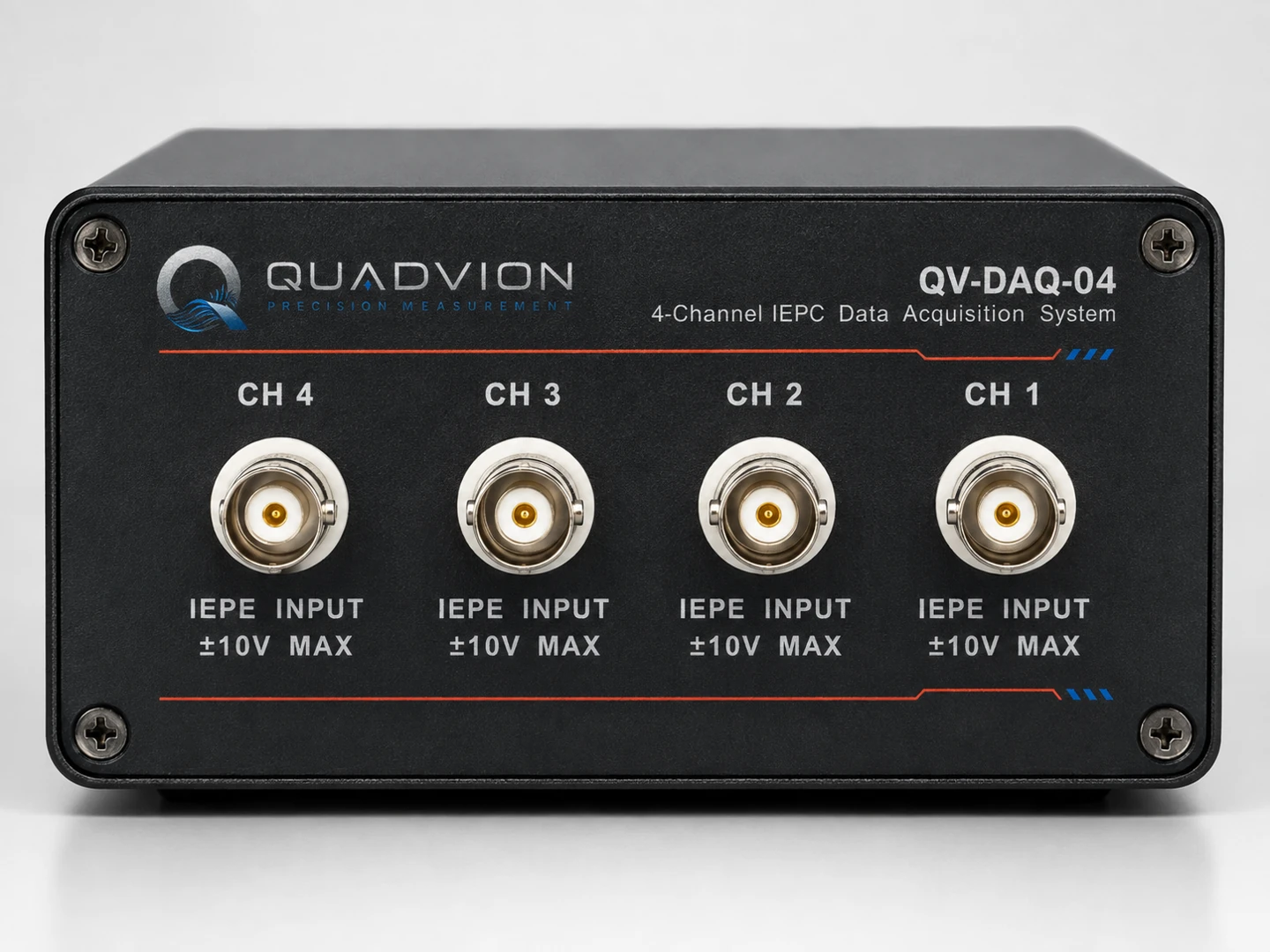

QV-DAQ-04 front panel with CH1 to CH4 BNC inputsQV-DAQ-04 / FRONT INTERFACE
COMPACT HARDWARE. CLEAR SIGNALS.

Four inputs.
One measurement system.

QV-DAQ-04 brings IEPE sensor acquisition and QV Axiom analysis together in a compact instrument for industrial vibration measurement.

  • Four simultaneous dynamic inputs
  • 24-bit acquisition with sensor configuration
  • Raw time recording and post-processing
  • Ethernet connection to your engineering PC
View product details
QV AXIOM / ENGINEERING SOFTWARE

See the signal.
Understand the machine.

Keep channels, units, frequency resolution and averaging settings visible as you move between live measurement and recorded data.

Time signalFFT1/3 octaveTrendPost-process
Discover QV Axiom
QV AXIOMIllustrative signal preview
Time / sSample data · acceleration / g
FROM MEASUREMENT TO DECISION

A complete engineering workflow.

Keep the signal, settings and machine context connected throughout the measurement.

  1. 01 / CONFIGURE

    Define the measurement

    Select sensors, channels, sensitivity and engineering units.

  2. 02 / ACQUIRE

    Capture the signal

    Review synchronized inputs and retain raw time records.

  3. 03 / ANALYSE

    Inspect the evidence

    Compare waveforms, FFT, octave and condition trends.

  4. 04 / REPORT

    Support the decision

    Export plots and measurements for engineering review.

DESIGNED AROUND YOUR APPLICATION

Where measurement matters.

All applications
Illustrative power generation machinery environment
POWER GENERATION

Critical plant machinery

Turbines, generators, pumps, fans and mills.

Illustrative industrial rotating machinery environment
INDUSTRIAL MACHINERY

Rotating equipment

Motors, pumps, gearboxes and production assets.

Illustrative marine application environment
MARINE & PROPULSION

Shipboard systems

Propulsion, auxiliaries and machinery diagnostics.

Application scenes are AI-generated illustrations. Product visuals show the Quadvion instrument.

SYSTEM SELECTION

Start with your measurement objective.

Use these starting points to discuss the appropriate hardware, software and deployment configuration.

Quadvion measurement workflows
Your objectiveSystem starting pointDiscuss with our team
Vibration testing and troubleshootingQV-DAQ-04 + QV AxiomSensor type, channels, frequency range and recording duration
Continuous machine monitoringOnline monitoring configurationMeasurement points, trends, events, retention and plant network
Noise and vibration validationNVH measurement configurationMicrophones, accelerometers, speed reference and analysis
Request a system configuration →
QUADVION INSTRUMENTS PRIVATE LIMITED

Engineering close
to the signal.

Based in Mumbai, Quadvion develops vibration acquisition hardware, engineering software and machine monitoring workflows. We start with your measurement requirement and configure the system around it.

Meet Quadvion
LET’S DISCUSS YOUR APPLICATION

A better measurement starts here.

Tell us about your machine, sensors and analysis requirements.
